What Is A Lube Oil Coalescer System?
Although our Vacuum Dehydration Oil Purification System (VDOPS) has many distinct performance advantages when removing water from a wide range of hydraulic and lube oils, there is a place for the Turbine Lube Oil Coalescer System.
​
This type of system is most commonly recognized as the Kaydon TurboToc®, which was made popular many years ago, before the improvement of vacuum dehydration technology and component reliability.
​
Coalescer/Separator filter elements can quickly remove free water from turbine oil, consistently achieving overall water contents down to around 150 PPM. Therefore, if you have a steam turbine with massive ingression of free water, a Lube Oil Coalescer System might be the right choice for you, especially if you are already using a Vacuum Dehydrator and the amount of water ingression is simply too much for the VDOPS to keep up.
​
In addition to removing free water, the Lube Oil Coalescer System is equipped with high-efficiency pleated microglass filter elements rated Beta>1000 per ISO 16889 to effectively remove particulate contamination to very low levels (ISO 16/14/11 or lower).
Lube Oil Coalescer System Is Ideal For:
-
Steam turbines with massive amounts of water ingression
-
Use in conjunction with a vacuum dehydrator, which also removes both emulsified and dissolved water
Technical Specifications
Product Overview
Standard Features​
​
-
Push-button on-off switch with fully automatic water drain and sump
-
NEMA 4 electric control panel with variable frequency drive (VFD), “plugged filter” indication, and automatic system shutdown
-
5 micron pre-filter & 2.5 micron post-filter rated Beta>1000 per ISO 16889
-
Upstream/downstream oil sample ports
-
Low-watt-density circulation heater with digital temperature controller
​
Optional Features and Benefits
​
-
Inline digital moisture indicator
-
Inline digital particle counter
-
Explosion-proof (NEMA 7) for class 1, division 2, group C&D hazardous locations
-
304SS Or 316SS material
-
Touchscreen controls
-
Siemens or Allen-Bradley PLC
-
480V, 3-phase or 220V, 1-phase electrical
-
Coreless filter elements
-

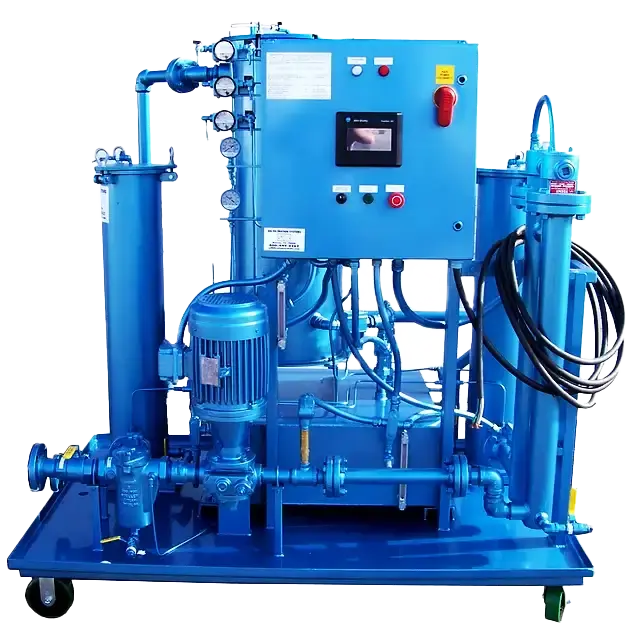

Skid-mounted for permanent installation or portable version with push-rail and oversized casters
-
Buna or Viton Seals
Performance​
​
-
Flow rates from 5 to 150 GPM.
-
Rapidly remove bulk free water from turbine oil, achieving overall water content as low as 150 PPM
-
Remove particulate down to ISO 16/14/11 or lower
​
Advantages
​
-
Lower cost than competitive systems and/or centrifuges
-
Simple and reliable operation requiring virtually no maintenance
-
Highest water extraction rates available in the industry
-
Compact, one-button operation for continuous duty
